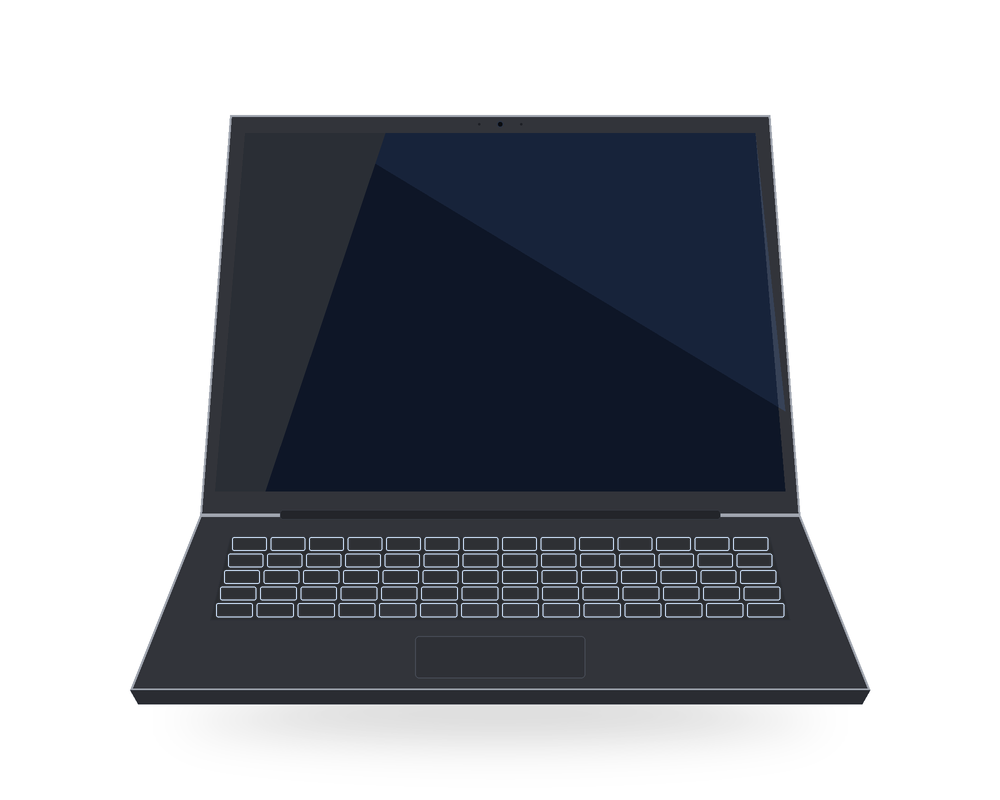

OFFICIAL FACTORY PACKSHOT•PURE WHITE STUDIO ISOMETRIC
DellultrabookARM ARCHITECTURE2024
Dell XPS 13 9345 Copilot+ PC
Technical Architecture Summary
- CPU Family
- Qualcomm Snapdragon X Elite
- Max Graphics TGP
- 30W TGP
- RAM Upgradability
- Soldered Onboard
- Battery / Weight
- 55 Wh / 1.17 kg
ZERO-PRICING STANDARD:OPA Specs exclusively indexes verified empirical engineering metrics, thermal dissipation data, and factory datasheets. No volatile retail pricing or affiliate markup.
Verified Retailer•Amazon Associate Network
Check Live Pricing & Inventory on Amazon
Query real-time stock, Prime delivery options, and verified merchant pricing for Dell XPS 13 9345 Copilot+ PC.
Buyer Protection
Amazon.comPrime Available
View current listings, renewed options, and official manufacturer storefronts
Check Price on Amazon
Fast Prime Shipping
A-to-z Buyer Guarantee
Manufacturer Warranty
Zero estimated pricing policy: Live inventory & pricing are queried directly on Amazon. As an Amazon Associate, OPA Specs earns from qualifying purchases.
Comprehensive Hardware Specification Matrix
Direct engineering breakdown categorized by compute, display, thermal envelope, I/O, and chassis acoustics.
01.Platform & Compute Architecture
- Processor / SoC
- Qualcomm Snapdragon X Elite (X1E-80-100, 45 TOPS NPU)
- CPU Core Configuration
- 12-core Oryon CPU (up to 3.4GHz, dual-core boost to 4.0GHz)
- Instruction Set
- ARM
- Graphics Subsystem
- Qualcomm Adreno GPU (3.8 TFLOPS)
- Max Graphics TGP
- 30 Watts
- AI NPU Acceleration
- 45 TOPS
- Operating System
- Windows 11 Home / Pro on ARM (Copilot+ PC)
02.Memory & Storage Upgradability
- RAM Capacity Options
- 16 GB / 32 GB / 64 GB LPDDR5X-8400
- RAM Technology / Clock
- LPDDR5X-8400 Dual-Channel
- Memory Upgradability
- No (Soldered Onboard)
- Memory Sockets / Form Factor
- Soldered Dual-Channel LPDDR5X (Non-upgradable)
- Base NVMe Capacity
- 512 GB
- M.2 Expansion Slots
- 1 Slot
- Storage Bus & Type
- Single M.2 2230 PCIe 4.0 NVMe SSD Slot
03.Display & Color Accuracy
- Display Panel Technology
- OLED
- Screen Diagonal Size
- 13.4 inches
- Aspect Ratio
- 16:10
- Native Resolution
- 2880 × 1800 px (3K Tandem OLED, Touch)
- Refresh Rate
- 60 Hz
- Color Gamut Calibration
- 100% DCI-P3 (DisplayHDR 500 True Black)
- Peak Brightness
- 500 nits
04.Chassis, Thermals & Battery
- Weight
- 1.17 kg (2.6 lbs)
- Thickness
- 14.8 mm
- Chassis Materials
- CNC machined aluminum unibody with seamless glass palm rest and invisible haptic touchpad
- Thermal Architecture
- Dual ultra-thin fans with graphite heat-spreader system
- Battery Capacity
- 55 Watt-hours
- Bundled Adapter Wattage
- 60 W
- USB-C Power Delivery Input
- Yes (Up to 60W)
05.I/O Ports & Wireless Connectivity
Port Complement
2x USB4 / Thunderbolt 4 Type-C with Power Delivery and DisplayPort 2.1
Thunderbolt / USB4
2x Thunderbolt
HDMI: None (DisplayPort over USB4)Card Reader & Audio
None Card Reader
3.5mm Headphone Jack: ❌ AbsentWireless Subsystem
Qualcomm FastConnect 7800 Wi-Fi 7 (802.11be), Bluetooth 5.4
