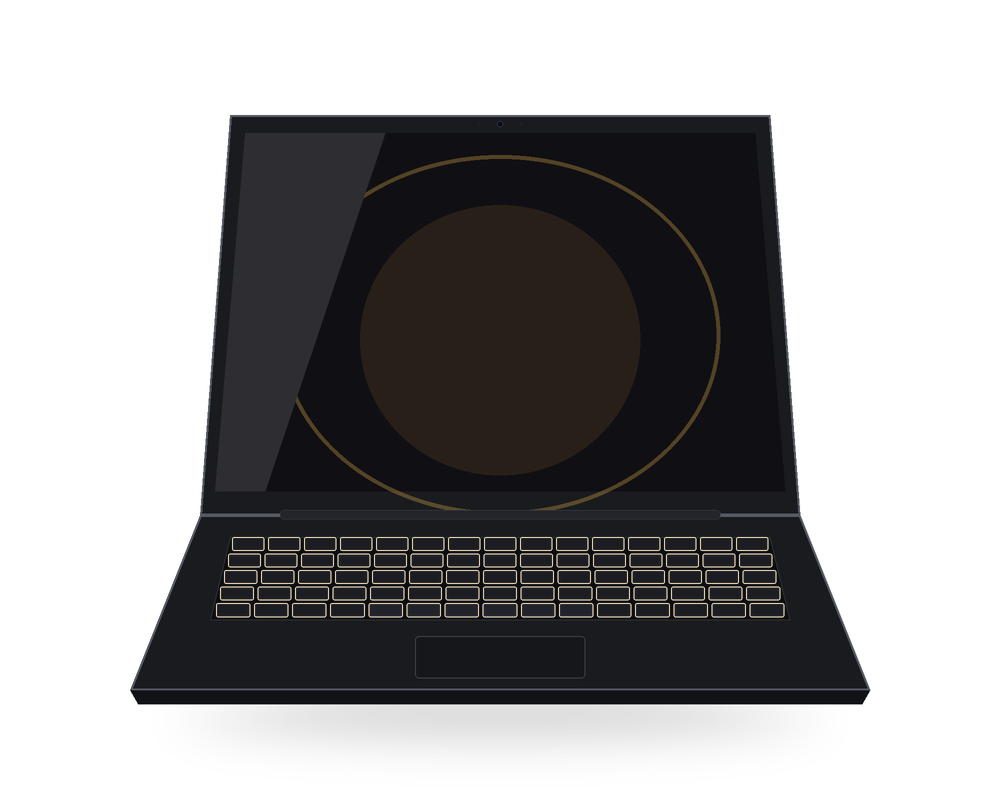

ASUS ProArt Studiobook 16 OLED (Rotary Dial)

Technical Architecture Summary

CPU Family: Intel Core i9-13980HX
Max Graphics TGP: 130W TGP
RAM Upgradability: ✅ Upgradable
Battery / Weight: 90 Wh / 2.1 kg

ZERO-PRICING STANDARD:OPA Specs exclusively indexes verified empirical engineering metrics, thermal dissipation data, and factory datasheets. No volatile retail pricing or affiliate markup.

Compare Side-by-Side →Jump to Full Spec Matrix ↓

Comprehensive Hardware Specification Matrix

Direct engineering breakdown categorized by compute, display, thermal envelope, I/O, and chassis acoustics.

01.Platform & Compute Architecture

Processor / SoC: Intel Core i9-13980HX (Raptor Lake 24-core / 32-thread 55W base TDP)
CPU Core Configuration: 24-core (8 Performance cores up to 5.6 GHz + 16 Efficient cores)
Instruction Set: x86_64
Graphics Subsystem: NVIDIA GeForce RTX 4070 Laptop GPU (8GB GDDR6) or RTX 3000 Ada Generation (8GB)
Max Graphics TGP: 130 Watts
Operating System: Windows 11 Pro

02.Memory & Storage Upgradability

RAM Capacity Options: 32 GB / 64 GB DDR5 SODIMM (Upgradable)
RAM Technology / Clock: DDR5-5200 MHz SODIMM dual-channel
Memory Upgradability: Yes (User-Upgradable)
Memory Sockets / Form Factor: 2x SO-DIMM (User-upgradable up to 64 GB)
Base NVMe Capacity: 1024 GB
M.2 Expansion Slots: 2 Slots
Storage Bus & Type: 2x M.2 2280 PCIe 4.0 x4 SSD slots with copper cooling bracket

03.Display & Color Accuracy

Display Panel Technology: OLED
Screen Diagonal Size: 16 inches
Aspect Ratio: 16:10
Native Resolution: 3200 × 2000 px (3.2K 120Hz 0.2ms OLED Touchscreen, stylus support)
Refresh Rate: 120 Hz
Color Gamut Calibration: 100% DCI-P3, Delta E < 1, Calman Verified, Pantone Validated, DisplayHDR True Black 500
Peak Brightness: 550 nits

04.Chassis, Thermals & Battery

Weight: 2.1 kg (4.6 lbs)
Thickness: 20.9 mm
Chassis Materials: Mineral Black magnesium-aluminum alloy body with ASUS Dial intuitive physical rotary controller and haptic touchpad
Thermal Architecture: ASUS IceCool Pro thermal technology: Dual 102-blade fans with liquid metal on CPU and 5 heatpipes
Battery Capacity: 90 Watt-hours
Bundled Adapter Wattage: 240 W
USB-C Power Delivery Input: Yes (Up to 100W)

05.I/O Ports & Wireless Connectivity

Port Complement

2x Thunderbolt 4 (DisplayPort, Power Delivery), 2x USB-A 3.2 Gen 2, HDMI 2.1 FRL, Full-size SD Express 7.0 reader (up to 985 MB/s), Gigabit Ethernet RJ-45, 3.5mm audio jack with ESS SABRE Hi-Fi DAC

Thunderbolt / USB4

2x Thunderbolt

HDMI: HDMI 2.1 FRL

Card Reader & Audio

Full-size SDXC Card Reader

3.5mm Headphone Jack: ✅ Present

Wireless Subsystem

Wi-Fi 6E (802.11ax) 2x2, Bluetooth 5.3
