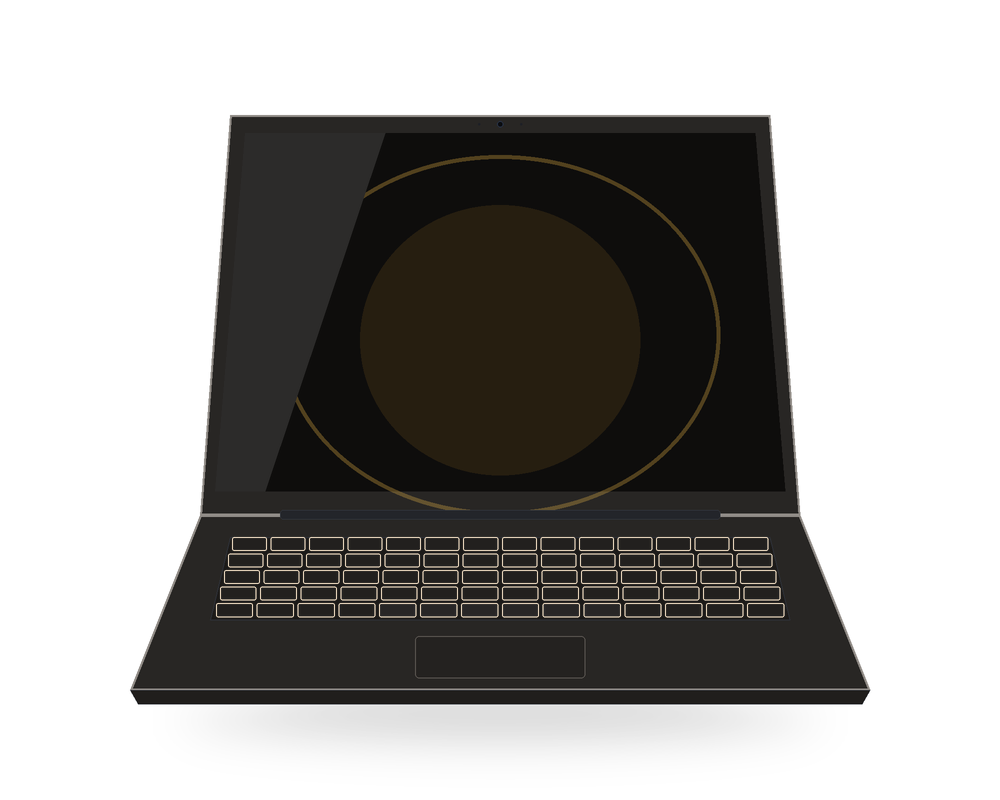

ASUS Zenbook S 14 OLED (UX5406 - 2024)

Technical Architecture Summary

CPU Family: Intel Core Ultra 7 258V
Max Graphics TGP: 28W TGP
RAM Upgradability: Soldered Onboard
Battery / Weight: 72 Wh / 1.2 kg

ZERO-PRICING STANDARD:OPA Specs exclusively indexes verified empirical engineering metrics, thermal dissipation data, and factory datasheets. No volatile retail pricing or affiliate markup.

Compare Side-by-Side →Jump to Full Spec Matrix ↓

Verified Retailer•Amazon Associate Network

Check Live Pricing & Inventory on Amazon

Query real-time stock, Prime delivery options, and verified merchant pricing for ASUS Zenbook S 14 OLED (UX5406 - 2024).

Buyer Protection

Amazon.comPrime Available

View current listings, renewed options, and official manufacturer storefronts

Check Price on Amazon

Fast Prime Shipping

A-to-z Buyer Guarantee

Manufacturer Warranty

Zero estimated pricing policy: Live inventory & pricing are queried directly on Amazon. As an Amazon Associate, OPA Specs earns from qualifying purchases.

Affiliate Disclosure →

Comprehensive Hardware Specification Matrix

Direct engineering breakdown categorized by compute, display, thermal envelope, I/O, and chassis acoustics.

01.Platform & Compute Architecture

Processor / SoC: Intel Core Ultra 7 258V (Lunar Lake, 47 TOPS NPU)
CPU Core Configuration: 8-core / 8-thread (4 Lion Cove P-cores + 4 Skymont LP E-cores)
Instruction Set: x86_64
Graphics Subsystem: Intel Arc 140V Graphics (8 Xe2-cores @ 1.95GHz)
Max Graphics TGP: 28 Watts
AI NPU Acceleration: 47 TOPS
Operating System: Windows 11 Home / Pro Copilot+ PC

02.Memory & Storage Upgradability

RAM Capacity Options: 32 GB LPDDR5X-8533 (Memory on Package)
RAM Technology / Clock: LPDDR5X-8533 On-Package Memory
Memory Upgradability: No (Soldered Onboard)
Memory Sockets / Form Factor: Memory-on-Package (MoP, Non-upgradable)
Base NVMe Capacity: 1000 GB
M.2 Expansion Slots: 1 Slot
Storage Bus & Type: Single M.2 2280 PCIe 4.0 x4 NVMe SSD Slot

03.Display & Color Accuracy

Display Panel Technology: OLED
Screen Diagonal Size: 14 inches
Aspect Ratio: 16:10
Native Resolution: 2880 × 1800 px (3K Lumina OLED, 120Hz 0.2ms)
Refresh Rate: 120 Hz
Color Gamut Calibration: 100% DCI-P3 (VESA DisplayHDR True Black 500)
Peak Brightness: 500 nits

04.Chassis, Thermals & Battery

Weight: 1.2 kg (2.6 lbs)
Thickness: 11.9 mm
Chassis Materials: Ceraluminum (High-tech ceramic-aluminum hybrid enclosure)
Thermal Architecture: Ultra-slim vapor chamber with dual IceBlade fans and geometric grilles
Battery Capacity: 72 Watt-hours
Bundled Adapter Wattage: 65 W
USB-C Power Delivery Input: Yes (Up to 65W)
